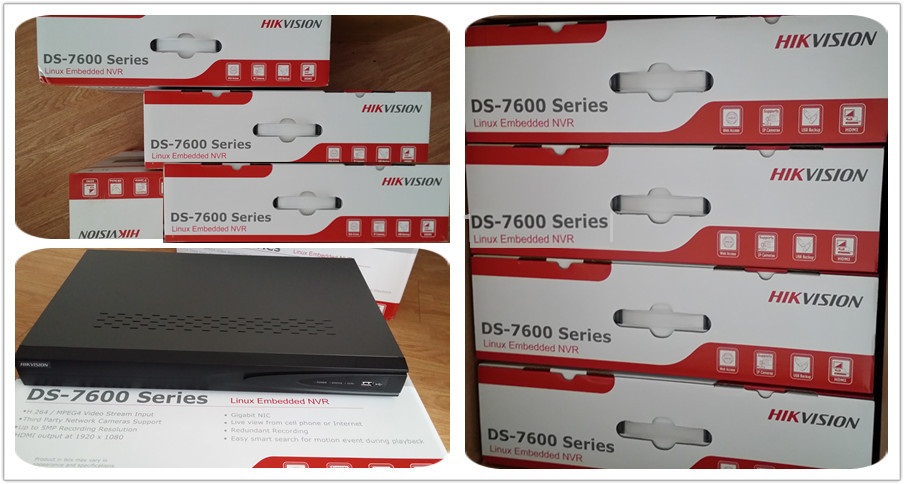

Ds-7616ni-e2 8p User Manual

Description

  1. Ds-7616ni-e2 8p User Manual Online

View online Operation & user’s manual for HIKVISION DS-7600 Network Hardware or simply click Download button to examine the HIKVISION DS-7600 guidelines. May 29, 2018  Amazon.com: HIKVISION DS-7616NI-E2/16P 16-CH & 16-PoE Network Video Recorder Embedded Plug & Play NVR: Camera & Photo. Page 1 DS-7604NI-E1/4P DS-7608NI-E2/8P DS-7616NI-E2/16P NVR USER’S MANUAL Version 3.3.2.; Page 2 The content of this manual is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Hikvision Digital Technology Co., Ltd. Hikvision assumes no responsibility or liability for any errors or inaccuracies that may.

Share the post 'DS-7616NI-E2/8P'

ModelDS-7616NI-E2/8P
IP video input:16-ch
Two-way audio input:1-ch, RCA (2.0 Vp-p, 1kΩ)
Incoming bandwidth:160Mbps
Outgoing bandwidth:80Mbps
Remote connection:128
HDMI/VGA output:1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
1024 × 768 /60Hz
Recording Resolution:6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate:Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
Synchronous Playback:16-ch
Live view / Playback:6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability:6-ch@1080P
SATA:2 SATA interfaces for 2 HDDs
Capacity:Up to 6TB capacity for each HDD
Network Interface:1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface:1 × USB 2.0 and 1 × USB 3.0
Alarm In:4-ch(optional)
Alarm Out:1-ch(optional)
Interface:8 independent 100 Mbps PoE network interfaces
Max. Power:120W
Supported Standard:AF and AT
Power Supply:100~240VAC
Consumption(without hard disk and POE):≤ 10W
Working Temperature:-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity:10 % ~ 90 %
Chassis:19-inch rack-mounted 1U chassis
Dimensions:445 × 290 × 45mm (17.5 ×11.4 × 1.8 inch)
Weight(without HDD):≤ 1 Kg (2.2 lb)
Ds-7616ni-e2 8p User Manual

DS-7600NI-I2 /P Series NVR Available Models DS-7608NI-I2/8P, DS-7616NI-I2/16P, DS-7632NI-I2/16P Key Features Professional and Reliable Dual-OS design to ensure high reliability of system running ANR technology to enhance the storage reliability when the network is disconnected. Page 1 Network Video Recorder User Manual UD01084B.; Page 2 (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. NVR Comparison Chart. A quick reference chart that outlines the differences between the various Hikvision NVR products. NVR Comparison Chart. May 05, 2017  Amazon.com: HIKVISION 16CH 16 Ports PoE DS-7616NI-E2/16P NVR Network Video Recorder with up to 5MP Resolution Recording Includes a 4TB Hard Drive: Camera & Photo.

Firmware

Description

Ds-7616ni-e2 8p User Manual Online

Video/Audio Input
IP video input:8-ch
Two-way audio input:1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth:80Mbps
Outgoing bandwidth:80Mbps
Remote connection:128
Video/Audio Output
HDMI/VGA output:1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
1024 × 768 /60Hz
Recording Resolution:6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate:Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
Audio Output:1-ch, RCA (Linear, 1kΩ)
Synchronous Playback:8-ch
Decoding
Live view / Playback:6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability:5-ch@1080P
Hard Disk
SATA:2 SATA interfaces for 2 HDDs
Capacity:Up to 4TB for each disk
External Interface
Network Interface:1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface:1 × USB 2.0 and 1 × USB 3.0
Alarm In:4-ch(optional)
Alarm Out:1-ch(optional)
POE
Interface:8 independent 100 Mbps PoE network interfaces
Max. Power:120W
Supported Standard:AF and AT
General
Power Supply:100~240VAC
Consumption(without hard disk and POE):≤ 10W
Working Temperature:-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity:10 % ~ 90 %
Chassis:19-inch rack-mounted 1U chassis
Dimensions:445 × 290 × 45mm (17.5 ×11.4 × 1.8 inch)
Weight(without HDD):≤ 1 Kg (2.2 lb)
